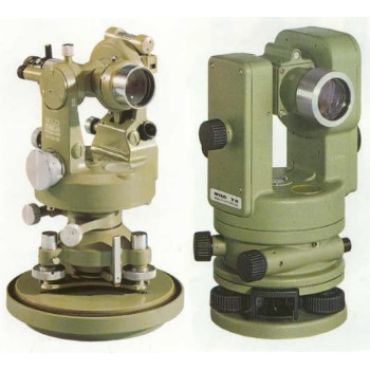

Wild T0 Comapss Theodolite
The Wild T0 is a Compass Thoeodolite and it was produced between 1932 and 1990 in mainly two version:

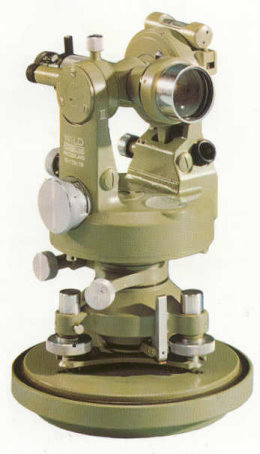

T0 (old style)1932 - 1978 |

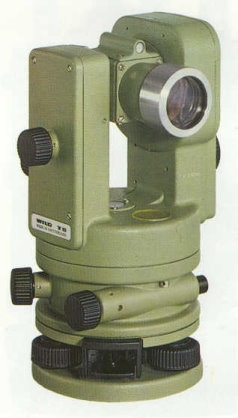

T0 (new style) 1979 - 1990 |
Technical data:
Model | T0 (alte Version) | T0 (neue Version) | |
magnification | (x) | 20 | 20 |
Image: (U=inverted; E=erect) | U | E | |
Field of view at 1000m | (m) | 36 | 35 |
Shortest focusing distance | (m) | 1.4 | 1 |
Multiplications constant | 50 / 100 | 100 | |
Additive constant | (cm) | 0 | 0 |
Sensitivity of plate level | per 2mm | 8' | 4' |
Direct reading | 360°Hz | 1° | 20" |
V | 10' | 5' | |
400°Hz | 1c | 1c | |
V | 10c | 10c | |
Reading by estimation | 360°Hz | 30" | 10" |
V | 1' | 1' | |
400°Hz | 1' | 30" | |
V | 2c | 2c | |
Weigth of instrument | (kg) | 2.7 | 2.7 |
Weigth of container | (kg) | 2.6 | 2.6 |
Brochure No: | G1 | 202 | 270 |
User Manual | G2 | 201e | 235e |
