Wild T2 Universal Theodolite
The Wild T2 is the best known theodolit from Wild and also the very first model produced from Wild in Heerbrugg.
Its a Universal Theodolite with a accuracy of 1".
The following models from the Wild T2 where produced:
T2: 1921 - 1936 (first in black/white and later in green) | |

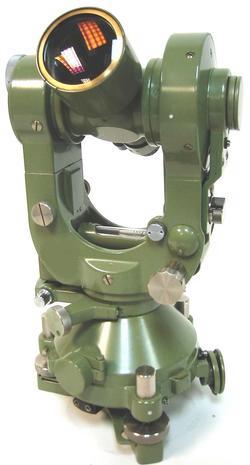

NT2: 1937 - 1955 (with fixed tribrach) | |

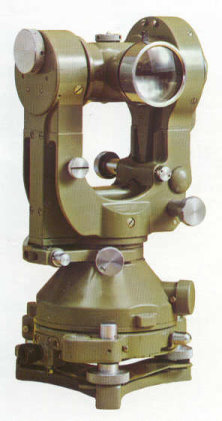

T21: 1956 - 1972 | |

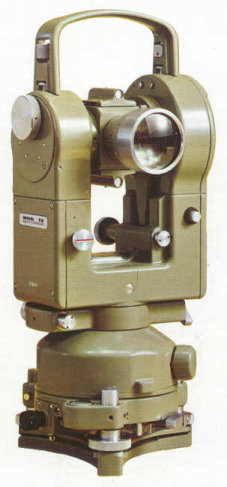

T2 (mod): 1973 - 1996 |
Technical data:
Model |
| T2 | NT2 | T21 | T21 dig | T2 mod |
---|---|---|---|---|---|---|
magnification | (x) | 24 | 28 | 28 | 28 | 30 |
Image: |
| U | U | U / E | U / E | E |
(U=inverted; E=erect) | ||||||
Field of view at 1000m | (m) |
| 29 | 29 | 29 | 29 |
Shortest focusing distance | (m) |
|
| 1.5 (U) | 1.5 (U) | 2.2 |
Multiplications constant |
| 100 | 100 | 100 | 100 | 100 |
Additive constant | (cm) | 0 | 0 | 0 | 0 | 0 |
Sensitivity of plate level | per 2mm | 20" | 20" | 20" | 20" | 20" |
Direct reading | 360° | 1" | 1" | 1" | 1" | 1" |
400° | 2cc | 2cc | 2cc | 1cc | 1cc | |
Reading by estimation | 360° | 0.5" | 0.5" | 0.5" |
|
|
400° | 1cc | 1cc | 1cc |
|
| |
Weigth of instrument | (kg) | 4.5 | 5.5 | 5.6 | 5.6 | 6 |
Weigth of container | (kg) | 1.7 | 2.5 | 2 | 2 | 2.2 |
Brochure No: |
|
| Th 56 | G1 143 | G287 | G1 265 |
User manual |
| Theo 1E | Th 58 | Th 144 | G2 206 | G2 244 |
