Kern Periscope Gonio 10x50

Kern Periscope Gonio 10x50

Zoom Zoom image

1'749,90 CHF

VAT excl. excl. Shipping costs

Shipping time:direct download after payment

Product no.: 1085
Manufacturer: Kern & Co. Aarau
More products of: Kern & Co. Aarau

Print datasheet


for sale is this very hard to find:

Swiss Army Periscope Gonio Kern 10x50
Angle Measuiring Instrument:
Periscope Goniometer 85

produced by: Kern & Co. AG, Aarau Switzerland

Technical Data
Magnification10x
Entry pupil diameter50mm
Exit pupil diameter5mm
Light-transmitting power25
Twilight Factor22.4
Field of view at 1000m100m
Field of view in degree5.6°
Dioptry adjusting range+4 Dioptry
- 4 Dioptry
Temperature range:
Operation
Storage

–30°C to +50°C (– 22°F to 122°F)
–40°C to +60°C (–40°F to 140°F)
Weight
Instrument
Backpack
Large tripod
Small tripod

4,6 kg
4,4 kg
5,3 kg
1,6 kg
Dimensions:
Height:
Width:
Depth:

ca. 390 mm
ca. 135 mm
ca. 155 mm

No focussing needed, just adjust the two oculars to your eyes and you will see all object sharp from 20m to infinity.

Anti Reflex coating for minimal optical loss of light and best twilight factor and laser safety. Suitable for all-weather contitions. Dust and water spray protected. Designed and produced for the hard use in the Swiss Army by Kern & Co, Aarau.

Reticle for angle- and distance mesurements in left eyepiece.

Rubber Eyecups for pleasant use; can be turned over for use with eyeglasses. Comes with eyepiece covers.

Like new codition, most likely never used !

package contents:

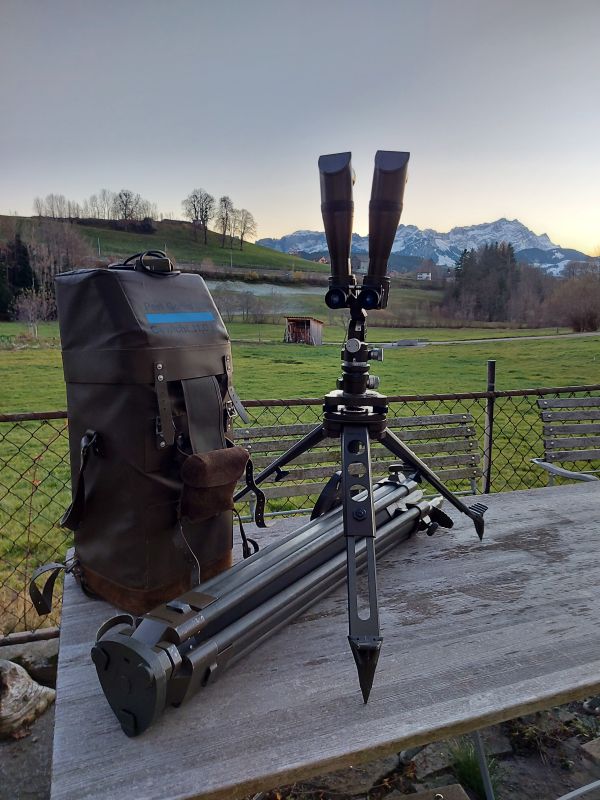

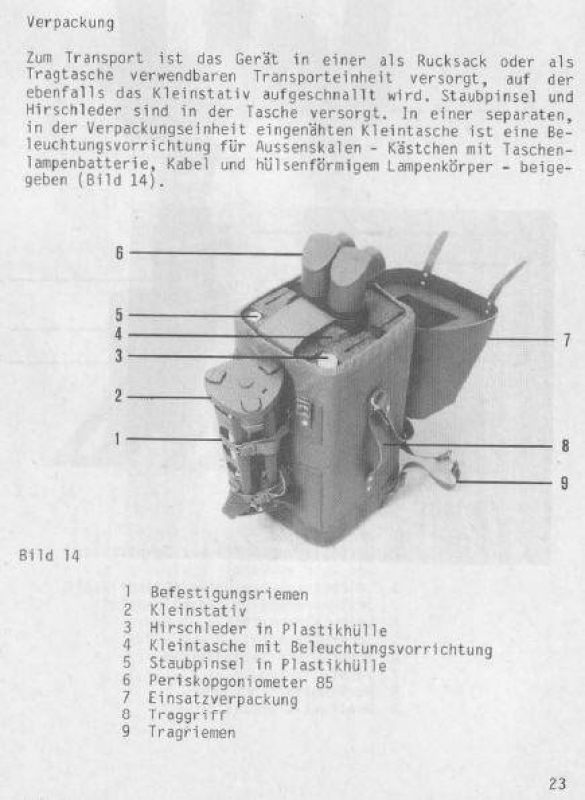

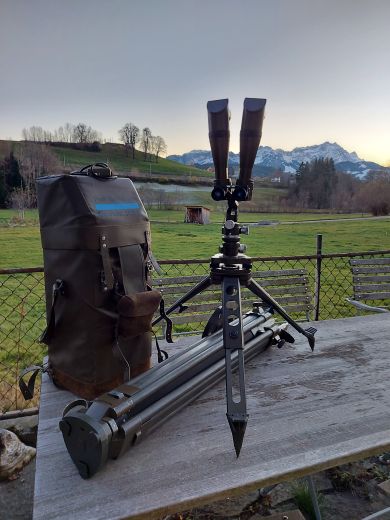

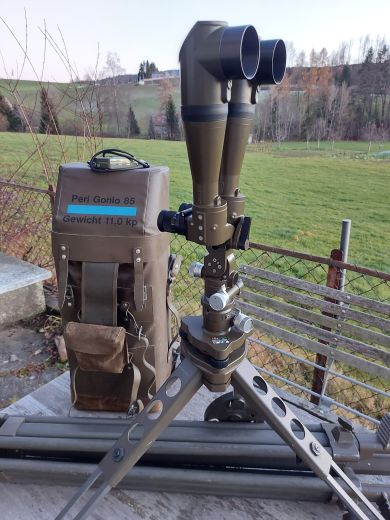

Periscope, tribrach with angle maesuring drives, small tripod, large tripod, backpack, accessories.



Old stock Swiss Army military Persicope 10x50 Observation Binoculars produced by Swiss Optics manufacturer Kern & Co. Aarau in 1985.



The Binoculars are in a very good condition.  Includes carrying case, 2 sets of tripods and lens cleaning kit.  Probably one of the most impressive 10x50 Binoculars ever made.



These Binoculars use the military style individually focusing eyepieces (set it and forget it) with long eye relief for those who wear glasses.  The binoculars also have a very high range interpupillary (IPD) adjustment that will allow proper viewing for most user.  These binoculars offer excellent performance in low light conditions.



The design uses fully coated optics for absolutely stunning resolution and image clarity and alloy construction to reduce weight.  Laser protection is provided by built in filters.  To calculate the range of objects a reticle with vertical and horizontal markings is built-in to the unit.  The periscope can also be used for angle measurements, it is even a compass installed. These binoculars are extremely rugged, relatively lightweight and can be taken anywhere using the highly portable carrying case.  The Carrying case includes backpack straps and a compartment inside the case for their storage when not in use.

The condition is very good, with no dust intrusion inside the binoculars, no mildew, and no scratches on the optic surfaces.

Price new was over 10'000 CHF

Kern Periscope Gonio 10x50Kern Periscope Gonio 10x50Kern Periscope Gonio 10x50Kern Periscope Gonio 10x50

This Product was added to our catalogue on 01/11/2013.
