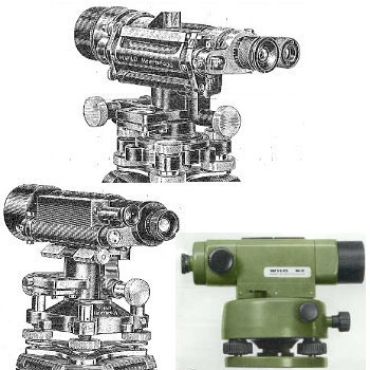

Wild N II - N2 - NK2 -N21 - NK21
The Wild N II / N2 / NK2 was produced between 1923 and 1983 in manly three versions:

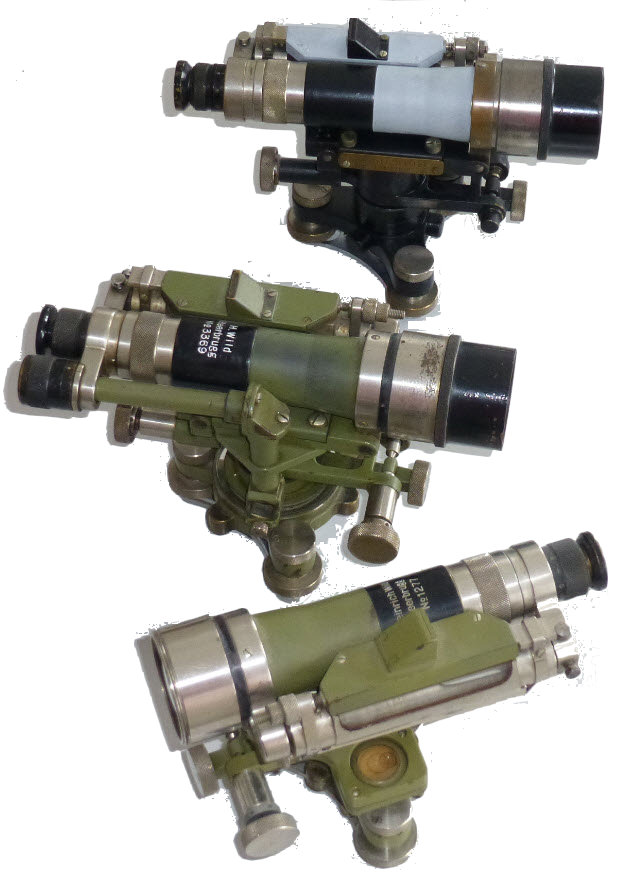

| The Wild N II was produced between 1923 and 1935 with and without Horizontal Circle. The first instruments where painted black and white and later in the Wild green. ............................................................................................................ |  |

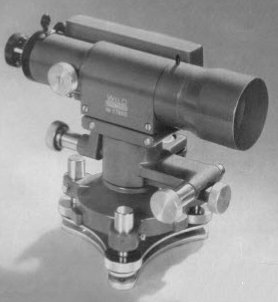

| Wild N II / NK II - N2 / NK2 with rotatable telescope from 1936 to 1968 The Wild N2 Engineers’ Level is a strongly built, accurate and reliable general purpose instrument, which is easy to operate. It is unsurpassed foe use on civil and constructional engineering projects, bench mark Establishment breaking down primary level networks, profiles, cross-sections, road and railway surveys and for photogrammetric height control. When fitted with a glass circle (NK2) it can be used in flat terrain for setting out works and for measuring horizontal angles and distances. Fine pointing is made with a horizontal clamp and a tangent screw and an accurate coincidence setting of the tubular level split bubble image is made by means of a tilting screw. The telescope and tubular level can rotate simultaneously about the longitudinal axis, enabling the vertical collimation to be checked easily at one instrumental set-up. |  |
Wild N2 / NK2 (new style) with rotatable telescope 1969 to 1983 Internally this version was called N21 / NK21 and later N21(Var) and NK21(Var). (1969-1975 as N21 / 1975 - 1983 as N21 (Var) |  |
- 1
Wild N2 / NK2 User manual (old style) from 14,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: 1-2 Days Wild N2 / NK2 (old style)
|
Wild N2 / NK2 User manual (new style) from 14,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: direct download after payment Wild N2 / NK2 (new style)
|
Wild - Levelling (old version) from 19,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: direct download after payment Wild - Levelling (old version)
|
Wild - Levelling (old version) from 19,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: direct download after payment Wild - Levelling (very old version)
|
Wild NII / NKII User manual (very old style) from 19,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: direct download after payment Wild NII / NKII (very old style)
|
Wild - Levelling from 19,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: direct download after payment Wild - Levelling
|
Wild - the principle of modern surveying instruments from 19,90 CHF ( VAT excl. excl. Shipping costs ) Shipping time: direct download after payment Wild - the principle of modern surveying instruments
|
