for sale is this used Wild Heerbrugg WILD N3 precision level with unique features
INCH version Micrometertange 0.5 in

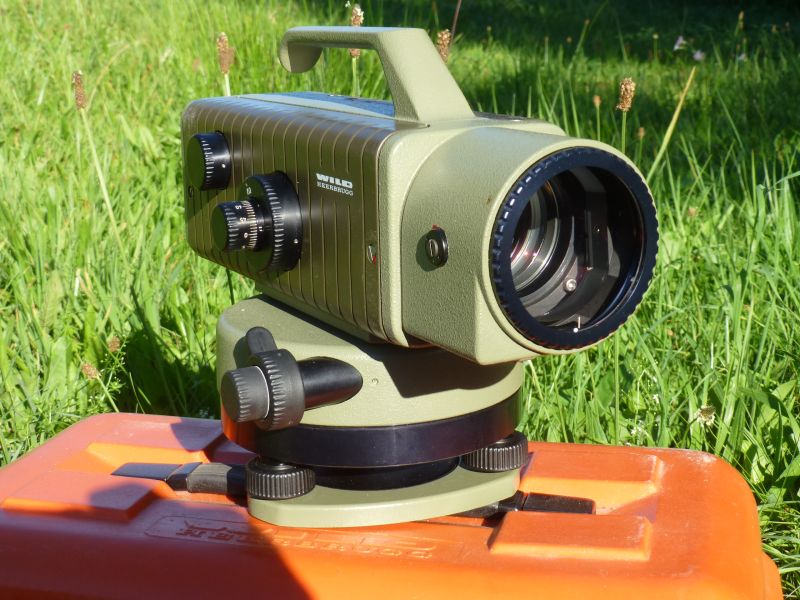

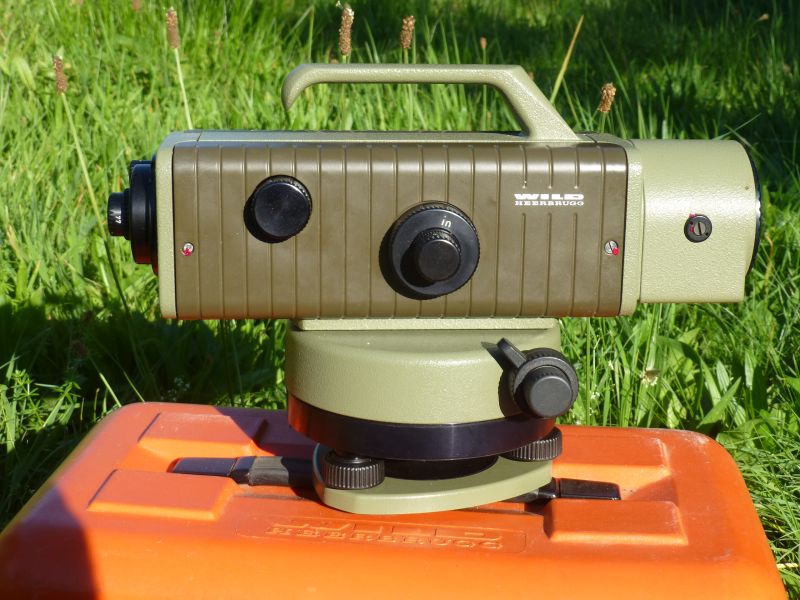

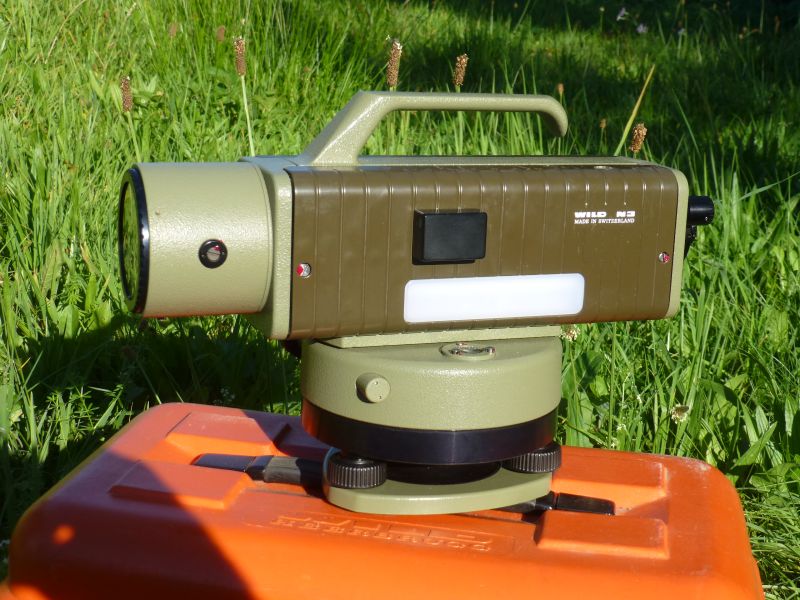

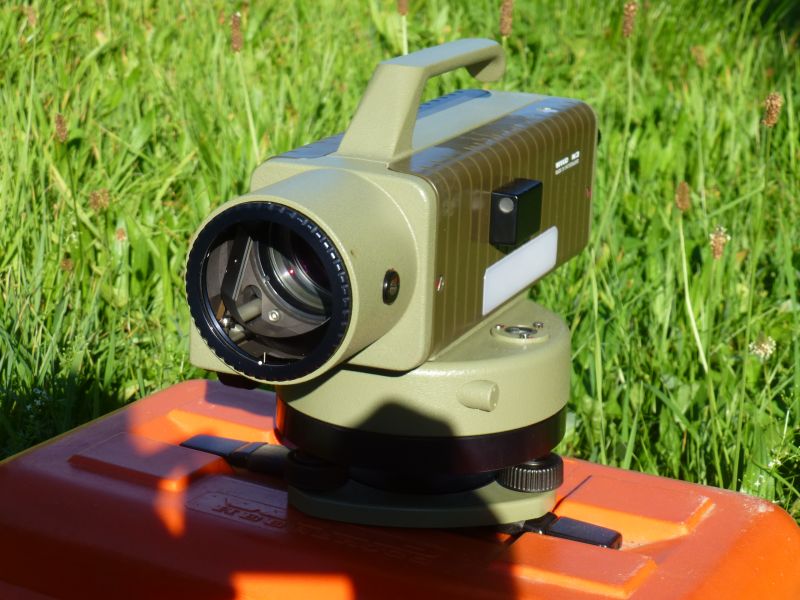

As you can see on the pictures is the Wild N3 in very nice condition and certainly fully functional.
Newly refurbished and full tested, adjusted and calibrated in Heerbrugg.
Leica's List price in 1997: 11'000 CHF (14'040 DM / $10'000 in 1992)
Leica's top-class optical quality gives the Wild N3 a bright high contrast image.
For years the WILD N3 has been a standard for precision and reliability. The latest N3 builds on this tradition.
The classical use of the instrument is for geodesy, particularly the measurement of national networks. For the highest accuracy requirements in engineering and for the control of structures , the N3 is widely employed. And there are other new and rapidly growing fields of application.
Today, in industry, laboratories , for research and for special measurements, a precision level of the high est class is needed .
The N3 is designed to meet this multiplicity of requirements , and it incorporates the latest advances in technology.
The N3 is a spirit-level instrument. For very good reasons.
The inherent qualities of a well-designed precision spirit-level produce a basic stability that an automatic level can hardly match .
Although a few first-order automatic levels, such as the WILD NA2 with parallel-plate micrometer, are capable of levelling accuracies approaching that of the N3 , there are circumstances and fields of application where the spirit-level instrument has important advantages.
When running lines of first-order levels in windy conditions, the N3 will give reliable results. The reason is the tubular level, the stability of the instrument.
Industrial users, laboratories and research establishments will find that the N3 is relatively unaffected by vibrations and that strong permanent magnetic fields have no influence at all.
The N3 can be used for measuring small inclinations for river crossings in geodesy and for setting and controlling inclinations in industry .
And it has a powerful telescope with zoom characteristics and alignment properties.
| Technical data | N3 |
Standard deviation for 1 mile/1km
double run levelling
Telescope with panfocal optics
Clear objective aperture | 0.0008 ft (±0,2 mm )
Panfocal Optic, erect image
2.05 in (52 mm)
11.7 in (297 mm) |
Magnification M
Field of view (Ø) at 330 ft/ 100 m
at 3.3 ft / 1 m
| Distanz M Ø
∞ 46x 1,0°
100m / 330ft 5x 5.9 ft (1,80 m)
10m / 33ft 34x 9.5 in (24 cm)
2m / 6.6ft 21x 3.1 in (8 cm)
1m / 3.3ft 0.16 ft (5 cm) |
Shortest focusing distance:
Standing axis to target
Cover glass to target | 17.7 in 45 cm
11.0 in 28 cm |
TUbular level, sensitivity per 2 mm
Setting accuracy (split bubble)
Circular level, sensitivity per 2 mm | 10"/2 mm
±0,25"
2' /2 mm |
| Plan parallel micrometer | Range Intervall Estimation
(10mm) (0,1 mm) (0,01 mm)
0,5 in 0,001 in 0,0005 in |
Tilting screw with graduation
Range = 8 revs = 400 intervals
(400:100000)
1 revolution = SO intervals
(SO :100 000)
1 interval on drum
(1:100000) | 8 revolutions
0.400 in / 100 in
0. 0400 ft / 10 ft
0.050 in / 100 in
0.0050 ft / 10 ft
0.001 in / 100 in
0.0001 ft /10 ft |
4.00mm/1m
824"
0.50mrn/1m
103"
0.01mm/1m
2" |
| Accuracy of measurement | 0,5" ±0,4% of measured inclination |
Parallel-plate micrometer
with glass scale | Range Interval Estimation
0.5in 0.001in 0.0005in
(10mm 0.1mm 0.01mm) |
| Environmental range | -22° to +140°F / -20°c ... +50°C |
Weight
N3
with accessories in container
Tripod GST40, with rigid legs
Tripod GST20-9, with telescopic legs |
5,1 kg
3,4 kg
6,0 kg
6,5 kg |
Optional Accessories:
Exchangable eyepiece FOK53 for higher magnification
Eyepiece lamp (converts the N3 into a collimator)
Laser Eyepiece DL2
Autocollimation eyepiece GOA2 | available on request ! |

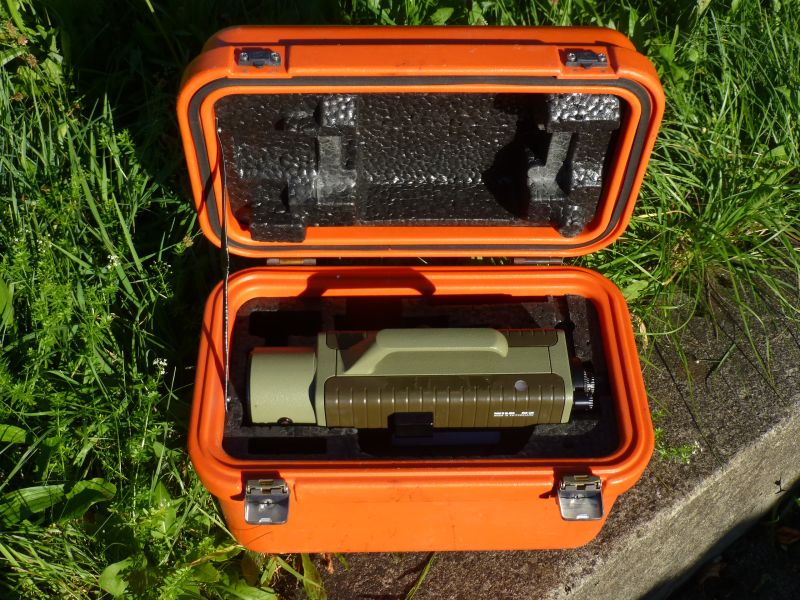

Art.No. 352370 N3 Precision Level, micrometer range 0.5 inch with accessories, in container
